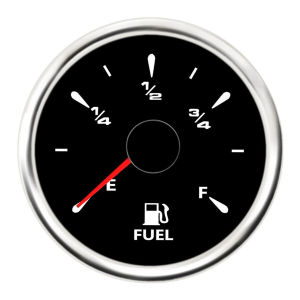

100-500mm 52mm 7 Colors Fuel Indicator Fuel Oil Level Indicator 0-190ohm Water Level Gauge Fuel Gauge Sensor for Car Boat

Introduction to the 7 Colors Fuel Indicator

The 100-500mm 52mm 7 colors fuel indicator is a top-of-the-line fuel gauge sensor designed specifically for cars and boats. With its advanced features and durable design, this fuel indicator provides accurate fuel monitoring and enhanced visibility, ensuring that you always stay informed about your vehicle's fuel levels. This article will provide a comprehensive overview of the product, including its key features, installation process, and usage instructions.

Product Overview

The 7 colors fuel indicator is a highly versatile fuel gauge sensor that supports a wide range of input signals, including 0-190ohm and 240-33ohm. With a working voltage range of 9~32V DC, this fuel indicator is compatible with most vehicles and boats. Its working current is ≤60mA, ensuring low power consumption and extended battery life.

Key Features

• 7 backlight color settings: red (default), green, blue, white, orange, yellow, and purple
• Range display: E-1/4-1/2-3/4-F
• Working voltage: 9~32V DC
• Input signal: 0-190ohm, 240-33ohm
• Working current: ≤60mA
• Working temperature: -30℃ ~ +75℃
• Storage temperature: -40°C ~ +85°C

How to Install the 7 Colors Fuel Indicator

Installing the 7 colors fuel indicator is a straightforward process that can be completed in just a few simple steps.

Preparation Steps

Before installing the fuel indicator, ensure that your vehicle or boat is turned off and disconnected from any power source. Gather the necessary tools, including a screwdriver, wire stripper, and electrical tape.

Installation Process

1. Locate the fuel tank and remove the existing fuel gauge sensor.
2. Connect the new fuel indicator to the fuel tank using the provided wiring harness.
3. Secure the fuel indicator to the dashboard or control panel using the included mounting bracket.
4. Connect the fuel indicator to the vehicle's electrical system.
5. Test the fuel indicator by turning on the vehicle or boat and observing the range display and backlight color settings.

How to Use the 7 Colors Fuel Indicator

Using the 7 colors fuel indicator is easy and intuitive, thanks to its range display and backlight color settings.

Understanding Range Display

The range display on the fuel indicator shows the current fuel level in the tank, ranging from E (empty) to F (full). The intermediate levels include 1/4, 1/2, and 3/4, providing a clear indication of how much fuel remains in the tank.

Backlight Color Settings

The fuel indicator supports seven backlight color settings, including red (default), green, blue, white, orange, yellow, and purple. These colors can be customized to suit your personal preferences or to match the interior of your vehicle or boat.

Benefits of Using the 7 Colors Fuel Indicator

Using the 7 colors fuel indicator offers several benefits, including improved fuel monitoring, enhanced visibility, and a durable design.

Improved Fuel Monitoring

The range display on the fuel indicator provides accurate fuel level readings, helping you stay informed about your vehicle's fuel consumption and avoid running out of fuel unexpectedly.

Enhanced Visibility

The seven backlight color settings on the fuel indicator allow you to customize the display to suit your preferences or to match the interior of your vehicle or boat. This enhances visibility and makes it easier to read the fuel level at a glance.

Durable Design

The fuel indicator is built to last, with a working temperature range of -30℃ ~ +75℃ and a storage temperature range of -40°C ~ +85°C. This ensures that the fuel indicator can withstand harsh weather conditions and extreme temperatures, providing reliable performance in any environment.

Conclusion

The 100-500mm 52mm 7 colors fuel indicator is a top-of-the-line fuel gauge sensor that offers accurate fuel monitoring, enhanced visibility, and a durable design. With its wide range of input signals, customizable backlight color settings, and easy installation process, this fuel indicator is the perfect choice for cars and boats. Whether you're a seasoned boater or a car enthusiast, the 7 colors fuel indicator is a must-have accessory that will help you stay informed about your vehicle's fuel levels and avoid running out of fuel unexpectedly.
