Universal 3 Jaws Bearing Puller & Remover Tools: A Comprehensive Guide

What is a Universal 3 Jaws Bearing Puller?

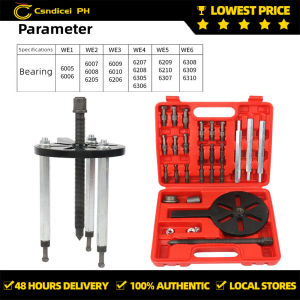

A universal 3 jaws bearing puller, also known as a bearing separator tool or bearing removal tool, is a versatile device designed to remove bearings from shafts or housings. This handy tool consists of three jaws that grip the outer race of the bearing and apply force to extract it safely and efficiently. The 3 jaws design ensures even distribution of force, preventing damage to the bearing or surrounding components.

Key Features & Benefits

The universal 3 jaws bearing puller offers several advantages over traditional bearing removal methods:

• Versatility: Designed to accommodate various bearing sizes, making it suitable for a wide range of applications.
• Ease of Use: Simple operation and installation, reducing the risk of injury or damage to the bearing.
• Time-Saving: Efficient removal process saves time and effort compared to manual methods.
• Cost-Effective: A single tool can replace multiple specialized pullers, reducing the need for a large inventory.

How It Works

The universal 3 jaws bearing puller works by applying force to the outer race of the bearing, causing it to separate from the shaft or housing. The three jaws grip the bearing securely, distributing force evenly around its circumference. As the puller is tightened, the jaws apply increasing pressure, gradually separating the bearing until it can be removed.

Applications

Universal 3 jaws bearing pullers are widely used in various industries, including automotive, manufacturing, and industrial maintenance. They are particularly useful for removing bearings from:

• Automotive components: Wheel hubs, transmission gears, and engine parts.
• Manufacturing equipment: CNC machines, lathes, and milling machines.
• Industrial machinery: Pumps, motors, and conveyor systems.

How to Choose the Right Bearing Puller Set

Selecting the appropriate universal 3 jaws bearing puller set depends on several factors:

Key Considerations

• Bearing Size: Ensure the puller set accommodates the size range of bearings you will be working with.
• Application: Consider the specific industry or equipment where the puller will be used.
• Budget: Determine your budget and weigh it against the features and quality of available options.

Popular Brands & Models

Some popular brands and models of universal 3 jaws bearing puller sets include:

• Pullmax: Known for their durable and reliable pullers, suitable for heavy-duty applications.
• Gator Tool: Offers a wide range of pullers with varying jaw sizes and capacities.
• Craftsman: Provides affordable puller sets with good performance for general-purpose use.

Comparison Chart

| Brand | Model | Jaw Sizes (mm) | Capacity (kg) | Price Range | | --- | --- | --- | --- | --- | | Pullmax | 3-Jaw Universal Puller | 10-100 | 200 | $50-$150 | | Gator Tool | Heavy-Duty Puller Set | 15-120 | 300 | $70-$200 | | Craftsman | Economy Puller Kit | 10-90 | 150 | $30-$100 |

Step-by-Step Guide to Using a Bearing Puller Set

Using a universal 3 jaws bearing puller set requires careful preparation, installation, operation, and maintenance.

Preparation

Before using the puller set, ensure you have:

• Proper tools: A wrench, hammer, and any necessary adapters.
• Clear workspace: Remove any obstructions and secure the equipment being worked on.
• Personal protective equipment: Wear gloves, safety glasses, and appropriate clothing.

Installation

To install the puller set:

1. Position the puller over the bearing, aligning the jaws with the outer race.
2. Tighten the puller's center screw until the jaws grip the bearing securely.
3. Attach the puller's handle or wrench to the center screw.

Operation

To operate the puller set:

1. Slowly turn the handle or wrench clockwise, applying steady pressure.
2. Continue turning until the bearing separates from the shaft or housing.
3. Remove the bearing and inspect it for damage.

Maintenance & Storage

To maintain and store the puller set:

• Clean: Wipe down the puller after each use, removing any dirt or debris.
• Lubricate: Apply a light coat of oil to the moving parts to prevent rust and corrosion.
• Store: Keep the puller in a dry, secure location, away from moisture and extreme temperatures.

Troubleshooting Common Issues

Encountering problems during bearing removal? Here are some common issues and solutions:

Identification & Solutions

• Bearing stuck: Tap the puller gently with a hammer to loosen the bearing.
• Jaws slipping: Tighten the puller's center screw more firmly.
• Uneven force distribution: Adjust the puller's position to ensure the jaws are evenly spaced around the bearing.

Tips & Tricks

• Use adapters: For bearings with unique dimensions, consider using adapters to accommodate the puller.
• Lubricate the bearing: Apply a lubricant to the bearing before removal to reduce friction and ease the process.
• Work slowly: Take your time during installation and operation to avoid damaging the bearing or surrounding components.

FAQ

Q: Can I use a universal 3 jaws bearing puller for all types of bearings?

A: While universal pullers can handle a wide range of bearings, some specialized applications may require specific pullers designed for particular bearing types.

Q: Is it safe to use a universal 3 jaws bearing puller?

A: When used correctly, universal pullers are safe and effective tools for bearing removal. Always follow safety guidelines and wear appropriate protective equipment.

Q: Can I rent a universal 3 jaws bearing puller instead of purchasing one?

A: Many tool rental stores offer universal pullers for short-term use. Check with local rental shops for availability and pricing.

Conclusion

A universal 3 jaws bearing puller is an essential tool for efficient and safe bearing removal in various industries. By understanding how to choose, use, and maintain these versatile devices, you can ensure optimal performance and extend the life of your equipment. With proper care and attention, a universal bearing puller set will serve you well for years to come.
