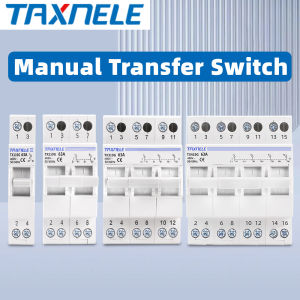

40A 63A MTS Dual Power Manual Transfer Isolating Switch Interlock Circuit Breaker 1P 2P 3P 4P 230V 400V Changeover Switch

What is a Dual Power Manual Transfer Switch?

A dual power manual transfer switch is a device designed to provide a seamless transition between two power sources, typically a primary utility supply and a backup generator. This switch allows users to manually select which power source to use, ensuring uninterrupted power supply during outages.

Key Features & Benefits

Dual power manual transfer switches come with several features and benefits, including:

• Manual operation: Users have full control over which power source to use, providing a high level of customization.

• Versatility: These switches are suitable for various applications, such as residential, commercial, and industrial settings.

• Safety: Dual power manual transfer switches incorporate safety mechanisms, such as interlock circuits and isolating switches, to prevent potential hazards.

Common Applications

Dual power manual transfer switches are commonly used in:

• Residential: Homes with backup generators to ensure uninterrupted power supply during outages.

• Commercial: Office buildings, retail stores, and other commercial establishments that require a stable power supply.

• Industrial: Factories, manufacturing plants, and other industrial facilities that rely on consistent power for their operations.

Choosing the Right Dual Power Manual Transfer Switch

When selecting a dual power manual transfer switch, it is essential to consider the following factors:

Voltage Considerations: 230V & 400V

Dual power manual transfer switches are available in two voltage ratings: 230V and 400V. It is crucial to choose the appropriate voltage rating based on the power requirements of your application.

Amperage Options: 40A & 63A

Dual power manual transfer switches come in two amperage ratings: 40A and 63A. The amperage rating should be chosen based on the load requirements of your application.

Understanding the Interlock Circuit & Isolating Switch

How It Works

An interlock circuit is a safety mechanism that prevents simultaneous connection to both power sources. When one power source is selected, the other is automatically disconnected, ensuring safe operation.

An isolating switch is another safety feature that physically disconnects the power source from the load, preventing any potential electrical hazards.

Importance of Safety

Safety is paramount when using dual power manual transfer switches. The interlock circuit and isolating switch help prevent electrical hazards, ensuring a safe and reliable power supply.

Modular Changeover Switches: Advantages & Disadvantages

Flexibility & Customization

Modular changeover switches offer flexibility and customization, allowing users to add or remove components based on their specific needs.

Cost Considerations

While modular changeover switches provide flexibility, they may be more expensive than fixed configurations due to the additional components required.

Installation & Maintenance Tips

Safety Precautions

Always follow the manufacturer's guidelines when installing a dual power manual transfer switch. Ensure proper grounding and wiring to prevent electrical hazards.

Regular Maintenance

Regular maintenance is essential to ensure the proper functioning of dual power manual transfer switches. Inspect the switch for any signs of wear or damage, and clean the contacts periodically to maintain optimal performance.
