Yamaha LC135 V1 Racing Digital Meter: A Comprehensive Guide

Introduction

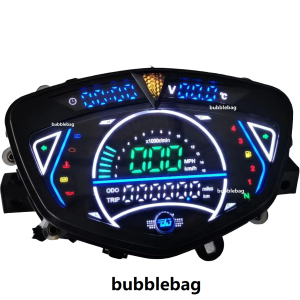

The Yamaha LC135 V1 Racing Digital Meter is a cutting-edge motorcycle speedometer designed specifically for Yamaha LC135 motorcycles. This digital racing meter features a seven-color water temperature display, an LCD RPM function, and a sleek, modern design that enhances the overall look of your motorcycle.

What is the Yamaha LC135 V1 Racing Digital Meter?

The Yamaha LC135 V1 Racing Digital Meter is a high-performance motorcycle speedometer that replaces the traditional analog speedometer. It is designed to provide accurate readings and real-time information about your motorcycle's performance, including speed, RPM, and water temperature.

Key Features

• Seven-color water temperature display
• LCD RPM function
• Digital speedometer
• Modern design

Technical Specifications

• Display type: LCD
• Display size: 2.4 inches
• Water temperature range: -40°C to +120°C
• RPM range: 0 to 10,000 RPM
• Power supply: 12V DC

How to Install the Yamaha LC135 Speedometer

Installing the Yamaha LC135 Speedometer is a straightforward process that requires some basic tools and materials.

Required Tools & Materials

• Screwdriver set
• Wire stripper
• Electrical tape
• Crimping tool
• Wiring harness

Step-by-Step Installation Guide

1. Disconnect the battery from your motorcycle.
2. Remove the old speedometer by unscrewing the screws that hold it in place.
3. Install the new speedometer by screwing it into place.
4. Connect the wiring harness to the new speedometer and secure it with electrical tape.
5. Reconnect the battery and test the speedometer to ensure it is working properly.

How to Use the LCD RPM Function

The LCD RPM function is a crucial feature of the Yamaha LC135 Speedometer, providing real-time information about your motorcycle's engine performance.

Understanding the RPM Display

The RPM display shows the revolutions per minute of your motorcycle's engine. It is displayed on the LCD screen and is updated in real-time as you ride.

Setting Up Alerts & Notifications

You can set up alerts and notifications to notify you when your motorcycle's RPM exceeds a certain threshold. This can help you avoid over-revving your engine and potentially damaging it.

Exploring the Seven Color Water Temperature Feature

The seven-color water temperature feature is a unique and visually appealing aspect of the Yamaha LC135 Speedometer.

Customizing Colors

You can customize the colors of the water temperature display to match your personal preferences. Simply adjust the settings in the speedometer's menu to change the color scheme.

Monitoring Temperature Changes

The water temperature display allows you to monitor changes in your motorcycle's engine temperature in real-time. This can help you identify potential issues before they become serious problems.

Troubleshooting Common Issues

If you encounter any issues with your Yamaha LC135 Speedometer, there are a few common problems and solutions to consider.

Speedometer Not Working Properly

If your speedometer is not working properly, try the following steps:

• Check the wiring harness connections
• Ensure the battery is properly connected
• Reset the speedometer by disconnecting and reconnecting the battery

Incorrect RPM Readings

If your speedometer is displaying incorrect RPM readings, try the following steps:

• Check the wiring harness connections
• Ensure the speedometer is properly calibrated
• Reset the speedometer by disconnecting and reconnecting the battery

Conclusion

The Yamaha LC135 V1 Racing Digital Meter is a must-have upgrade for any Yamaha LC135 motorcycle owner. Its sleek design, accurate readings, and real-time information about your motorcycle's performance make it a valuable addition to your ride. Follow this comprehensive guide to install, use, and troubleshoot your new speedometer, and enjoy the thrill of riding with confidence and precision.
