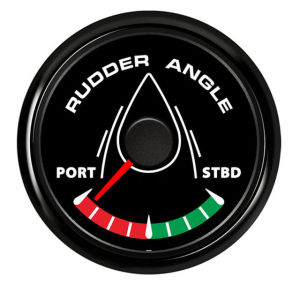

52mm Boat Marine Rudder Angle Indicator 0-190 ohm With Rudder Angle Sensor 8 color backlight 12V/24V

Introduction to the 52mm Marine Rudder Angle Indicator

The 52mm Marine Rudder Angle Indicator is a high-quality boat navigation device designed to provide accurate rudder angle readings for marine vessels. This article will cover its key features, installation process, usage instructions, and troubleshooting tips.

Key Features of the 52mm Marine Rudder Angle Indicator

The 52mm Marine Rudder Angle Indicator boasts several standout features:

• Install diameter: Φ52mm or 2-1/16"
• Indication range: PORT~STBD
• Input signal: 0~190ohm
• Working voltage: 9~32VDC
• Working current: ≤60mA

How the 52mm Marine Rudder Angle Indicator Works

The 52mm Marine Rudder Angle Indicator operates by monitoring the input signal from the rudder sensor, which ranges from 0 to 190 ohms. It then displays the rudder angle on the 8-color backlight display, providing a clear visual representation of the vessel's steering position.

Installation & Setup

Installing and setting up the 52mm Marine Rudder Angle Indicator is a straightforward process that requires minimal technical expertise.

Installing the 52mm Marine Rudder Angle Indicator

To install the indicator, follow these steps:

1. Ensure that the mounting surface is clean and free of debris.
2. Align the indicator with the mounting hole, ensuring that the diameter matches Φ52mm or 2-1/16".
3. Secure the indicator using the appropriate fasteners.

Setting Up the 8 Color Backlight Display

Setting up the 8 color backlight display involves connecting the indicator to the power supply. Make sure to connect the positive (+) terminal to the working voltage (9~32VDC) and the negative (-) terminal to ground.

Configuring the 0-190 Ohm Rudder Sensor

Configuring the rudder sensor involves connecting it to the input signal terminals on the indicator. The sensor's resistance should range from 0 to 190 ohms, which corresponds to the rudder angle being monitored.

Using the 52mm Marine Rudder Angle Indicator

Operating the 52mm Marine Rudder Angle Indicator is simple and intuitive.

Monitoring Rudder Position with the 52mm Marine Rudder Angle Indicator

Once installed and configured, the indicator will display the rudder angle on the 8-color backlight display. The display will show the rudder position as it moves from PORT to STBD.

Adjusting the Working Voltage (12V/24V)

The working voltage of the 52mm Marine Rudder Angle Indicator can be adjusted to either 12V or 24V by connecting the appropriate power supply to the positive (+) terminal.

Troubleshooting Common Issues

If you encounter issues with the 52mm Marine Rudder Angle Indicator, try the following troubleshooting steps:

1. Check the connections between the indicator, power supply, and rudder sensor.
2. Verify that the working voltage is within the specified range (9~32VDC).
3. Ensure that the rudder sensor's resistance is within the specified range (0~190ohm).

Conclusion

Summary of Key Points

• The 52mm Marine Rudder Angle Indicator is a reliable boat navigation device that provides accurate rudder angle readings.
• Key features include an install diameter of Φ52mm or 2-1/16", indication range of PORT~STBD, input signal of 0~190ohm, working voltage of 9~32VDC, and working current of ≤60mA.
• Installation and setup involve mounting the indicator, setting up the 8-color backlight display, and configuring the rudder sensor.
• Operating the indicator involves monitoring the rudder position, adjusting the working voltage, and troubleshooting common issues.

Final Thoughts on the 52mm Marine Rudder Angle Indicator

The 52mm Marine Rudder Angle Indicator is an essential tool for marine vessels, providing accurate rudder angle readings and enhancing overall navigation safety. Its ease of installation, intuitive operation, and reliable performance make it an excellent choice for boat owners and operators.
