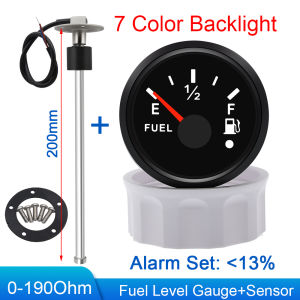

0-190Ohm Fuel Float Sensor + Fuel Level Gauge 7 Color LED Fuel Tank Level Gauge With Alarm Light For Marine Car RV Camper Yacht

Fuel Gauge Specification:- Operating Voltage:9~32VDC,- Operating current:≤70mA(24V);- Operating temperature:-30~+75℃- Storage temperature:-40~+85℃.- Signal: 0-190ohm- Backlight: 8 Color LED- Range: Empty to 1/2 to FullOperation:1, Press the Mode button (less than 1 second) to change thebacklight color: Backlight changed in sequence: red (default) →green → blue → white → yellow green → orange →Purple2,Users could select the input resistance as downbelow operations if you have Fuel /Water/Sewagelevel gauge.Hold the Mode button for 3 seconds toenter the setting mode, back light flickering for a while.The needle point at the ''E'' position, and you could selectthe corresponding parameter via pressing the buttonas down below form.Gauge Connection:1,Red --+9~32VDC2,Black-- Signal Input3,Orange--Blacklight(+)4,Blue--Ground(-)Package:1 PCS Gauge+Cable+Manual Fuel Level Sensor Specification:- Protection ank: IP67- Resolution range: 21 mm- Assembly: SAE standard 5 holes- Rated current for alarm switch: 500mA- Operating temperatures: - 40 to 85 Celsius- Fit for Fuel Level Gauge and Water Level Gauge- Sensor Length :100mm-500mm- Mounting: 5 pieces of M5 screws and 2 mm thick gasket- Output signal: 0~190 ohm (Standard European),Can be customized:- Sensor Length:100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm and so on- Output signal:0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on- The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~Attention:- Empty oil level : 0 ohm- Full oil level : 190 ohm- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~Package:1 x Sensor1 x Gasket5 x Screws
