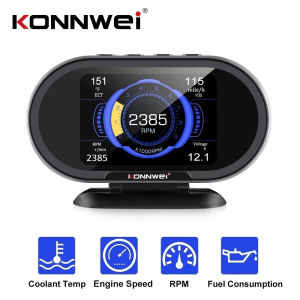

KONNWEI KW206 OBD2 Scanner Car Smart Gauge Digital On-Board HUD Head-up Digital LCD Display Fuel Consumption Water Temperature OBD2 Gauge Display Speedometer For Toyota Mitsubishi Honda Hyundai Ford Mazda Suzuki For All Gasoline/Diesel Universal 12V Cars

Product Overview：

1. show all live data in one screen, It's a combination of speedometer, engine temperature gauge, oil thermometer, boost gauge, fuel consumption meter and so on.

2. monitor and display the battery voltage, over speed alarm, engine temperature warning, acceleration test etc more

3. read all the engine the real-time data stream, read and erase check engine trouble code

Top reasons to choose KW206：

1. The 3.5in digital LCD displays real-time parameters of the vehicle, improve the driving safety.

2. Over-speed warning, Engine Coolant Temperature warning, speed warning, Engine running voltage warning, supports self-definition warning.

3. OBD diagnosis, the KW206 supports OBDII system error code diagnosis, clear, and display OBDII data stream (text format) 4.0-100KM time recording: 0-100km acceleration test

4.  Fuel Level, Engine Load Value, Fuel Consumption, Oxygen sensor reading, B1S1, B2S1 etc.

5. Support all OBD2 full protocol and commands, including J1850 dual protocol, ATTPS etc.

6. Automatically turn off shut down when the voltage is lower than the engine off voltage, no need to unplug it from OBDII port.

7. Automatic switching of brightness during day and night.

8. Supports life-time free update and upgrades via KONNWEI Uplink App.

Support Cars list：

American (USA) car:

Compatible with Standard OBD2 Cars from 1996 to Now: For Chrysler, for Ford, for GM, for Jeep

European car: Compatible with Standard OBD2 Cars from 2003 to Now:

For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar France Car after 2006: for Citroen，for Fiat，for Renault，for Peugeot Not Support for Renault Clio 2/Megane/Dacia ,

Asian car Compatible with Standard OBD2 Cars from 2008 to Now:

for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota

Chinese car:

Compatible with Standard OBD2 Cars from 2010 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry

NOTE:

Even though it compatible with almost all cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special designed, so it may not compatible with some cars which do not support OBD2 protocol.

Especially Japanese and Korean car brand at 2005-2007. Please Leave us message in below format, we will reply you within 8 hours.

for example : xx, 2005, 2.0cc, Diesel Warning:

Not support hybrid car and electric car.

Not Support Russian Cars VAZ,UAZ,LADA ;

Not works with Ssangyong

Not Support Opel Corsa c 2004 1.3 CDTI

Nor Support Citroen C4 ，C5

Not support Renault logon and Megane

Support Protocols:

Support full obd2 protocols, include J1850:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Solution for KW206 does not shut down When closed car.

1, long press the button "ESC" then enter Main Menu

2, find the option OBD Para Set

3, choose the "Start Vol" then adjust the value to 13.5 Volt

4, check again if the issue can be solved
