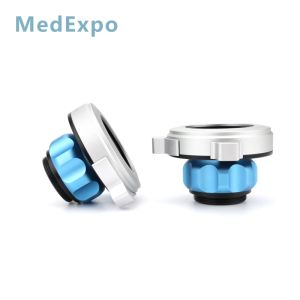

4K UHD Endoscope Camera Optical Coupler Focal Length F13 F18 F22 F25 F28 F35mm

Understanding the EA-DF Optical Coupler

What is an Optical Coupler?

An optical coupler is a device used to connect endoscopic camera heads to medical imaging equipment, ensuring high-resolution images are captured and transmitted accurately. The EA-DF optical coupler is specifically designed for 4K UHD endoscope cameras, providing exceptional image quality and versatility.

EA-DF Optical Coupler Specifications

The EA-DF optical coupler is a high-quality product originating from Mainland China, with a pixel resolution of 4K. It is compatible with C/CS mounts and offers multiple focal length options, including F13, F18, F22, F25, F28, and F35mm. This wide range of focal lengths allows medical professionals to choose the right coupler for their specific needs.

Applications of the EA-DF Optical Coupler

The EA-DF optical coupler is widely used in various medical fields, such as gastroenterology, urology, and gynecology. Its high-resolution capabilities make it ideal for performing minimally invasive procedures and capturing clear images during surgeries. Additionally, the coupler can be easily integrated into existing medical imaging systems, enhancing the overall diagnostic and therapeutic experience.

Focal Length Explained

Importance of Focal Length in Medical Imaging Equipment

Focal length plays a crucial role in determining the magnification and field of view of medical imaging equipment. A shorter focal length provides a wider field of view, while a longer focal length offers greater magnification. In endoscopic procedures, selecting the appropriate focal length is essential for obtaining clear images and ensuring accurate diagnoses.

Focal Length Options for the EA-DF Optical Coupler

The EA-DF optical coupler offers six focal length options: F13, F18, F22, F25, F28, and F35mm. Each focal length has its own advantages and applications, allowing medical professionals to choose the optimal option for their specific needs. For example, a shorter focal length may be preferred for procedures requiring a wider field of view, while a longer focal length may be better suited for procedures requiring greater magnification.

Choosing the Right Focal Length for Your Needs

Selecting the appropriate focal length for your endoscopic procedure depends on several factors, including the type of procedure, the anatomy being examined, and the desired level of magnification. It is essential to consult with experienced medical professionals and carefully evaluate the available options before making a decision. Additionally, the EA-DF optical coupler's compatibility with C/CS mounts ensures seamless integration with existing medical imaging systems.

Mounting the EA-DF Optical Coupler

C/CS Mount Compatibility

The EA-DF optical coupler is compatible with both C and CS mounts, making it easy to integrate into existing medical imaging systems. This compatibility ensures that the coupler can be used with a wide range of endoscopic camera heads, providing flexibility and convenience for medical professionals.

Installing the Optical Coupler

Installing the EA-DF optical coupler is a straightforward process. First, ensure that the endoscopic camera head is compatible with the coupler's mount type. Next, carefully align the coupler with the camera head and securely fasten it using the provided mounting screws. Finally, test the connection to ensure proper alignment and image quality.

Troubleshooting Mounting Issues

If you encounter any issues while mounting the EA-DF optical coupler, refer to the manufacturer's instructions for guidance. Common problems include misalignment, loose connections, and incorrect focal length selection. In some cases, consulting with a qualified technician may be necessary to resolve the issue and ensure optimal performance.

By understanding the EA-DF optical coupler's specifications, applications, and installation process, medical professionals can take full advantage of its high-resolution capabilities and enhance their diagnostic and therapeutic experiences. With the right focal length and mounting configuration, the EA-DF optical coupler is an invaluable tool for performing minimally invasive procedures and capturing clear images during surgeries.
