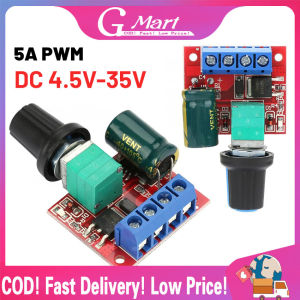

⭐【LazTop Seller】Mini 5A 90W PWM DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch LZC-PWM-Controller-Module

What is the LZC-PWM-Controller-Module?

The LZC-PWM-Controller-Module is a compact, efficient Mini 90W PWM DC Motor Speed Controller Module that allows users to adjust the speed of their DC motors easily. With a wide input voltage range of 4.5V-35V, this module is compatible with various applications, making it a versatile addition to your projects.

Key Features & Specifications

• Input Voltage Range: 4.5V - 35V
• Output Current: Up to 5A
• Power Rating: 90W
• PWM Frequency: 15kHz
• Dimensions: 30mm x 30mm x 10mm
• Weight: 20g

How It Works

The LZC-PWM-Controller-Module works by using Pulse Width Modulation (PWM) technology to control the speed of DC motors. PWM is a technique that modulates the width of the pulses sent to the motor, effectively controlling its speed and power output. By adjusting the duty cycle of the PWM signal, users can easily control the motor's speed.

Benefits of Using This Module

• Compact Size: The LZC-PWM-Controller-Module has a small form factor, making it easy to integrate into various projects and applications.
• Adjustable Speed Control: With a wide input voltage range and adjustable speed settings, this module allows users to control their DC motors with precision.
• High Efficiency: PWM technology ensures efficient power usage, minimizing heat generation and extending the lifespan of both the module and the motor.

How to Use the LZC-PWM-Controller-Module

Installation Process

To install the LZC-PWM-Controller-Module, simply connect it to your DC motor and power supply according to the wiring diagram provided in the user manual. Follow the instructions carefully to ensure proper installation and avoid any potential issues.

Connecting the Module to Your System

Connect the module's input terminals to your power supply and the output terminals to your DC motor. Ensure that the polarity is correct and that all connections are secure before powering on the system.

Adjusting the Speed Control Settings

To adjust the speed control settings, use the potentiometer on the module to fine-tune the motor's speed. Refer to the user manual for detailed instructions on how to set the desired speed.

Troubleshooting & Maintenance Tips

Common Issues & Solutions

If you experience any issues with the LZC-PWM-Controller-Module, refer to the troubleshooting guide in the user manual. Common problems include incorrect wiring, insufficient power supply, or damaged components. Always consult the user manual before attempting any repairs or troubleshooting steps.

Cleaning & Maintenance

Regular cleaning and maintenance are essential to ensure the optimal performance of the LZC-PWM-Controller-Module. Keep the module free from dust and debris, and avoid exposing it to extreme temperatures or humidity levels. Follow the maintenance guidelines provided in the user manual to extend the lifespan of your module.

Extending the Lifespan of Your Module

To extend the lifespan of your LZC-PWM-Controller-Module, avoid overloading the motor or exceeding the module's power rating. Regularly check the connections and components for signs of wear or damage, and replace any faulty parts as needed.

Delivery & Warranty Information

Fast Delivery Options

Enjoy fast delivery options with LazTop Seller. Orders within NCR (National Capital Region) arrive within 1-2 business days, while orders to other areas arrive within 2-5 business days.

Quality Guarantee & Local Supplier

Rest assured that your LZC-PWM-Controller-Module comes from a trusted local supplier and is well-packed to ensure safe delivery. LazTop Seller guarantees the quality of all products sold.

3-Month Warranty Coverage

LazTop Seller offers a 3-month warranty coverage for the LZC-PWM-Controller-Module. If you experience any issues within this period, contact LazTop Seller for a replacement or repair.

Conclusion

The LZC-PWM-Controller-Module is a versatile Mini 90W PWM DC Motor Speed Controller Module that offers adjustable speed control, high efficiency, and a compact form factor. With fast delivery options, quality guarantees, and a 3-month warranty coverage, LazTop Seller is your go-to source for this reliable module.
