Product Overview

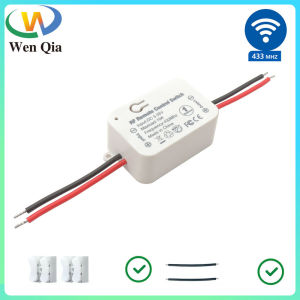

The RF 433MHz DC 12V Remote Control Switch is a versatile and reliable wet contact controller designed for a wide range of applications. This device allows users to control various electrical components, such as motorcycle lights, car lights, LED lighting, and electric gates, using a remote control transmitter. The product includes a 6V 24V 30V relay receiver with wires and transmitters, along with batteries.

Key Features

  • Compatible with DC 6V, 12V, 24V, and 30V working voltages
  • Port configuration: +V -V (input), +V -V (output)
  • Three operating modes: Momentary, Toggle, and Latched
  • Remote battery included: 2x CR2016 or 1x CR2032
  • Remote range up to 50 meters in open space

Compatibility & Applications

The RF 433MHz DC 12V Remote Control Switch is ideal for use in various scenarios, including:

  • Motorcycle lighting control
  • Car lighting control
  • LED lighting control
  • Electric gate operation

How to Use the RF 433MHz DC 12V Remote Control Switch

Follow these steps to set up and operate the RF 433MHz DC 12V Remote Control Switch:

Setting Up the Relay Receiver

  1. Connect the input wires (+V -V) to the power source (DC 6V, 12V, 24V, or 30V).
  2. Connect the output wires (+V -V) to the load or device being controlled.
  3. Set the operating mode using the toggle switch on the relay receiver.

Connecting the Transmitter

  1. Insert the CR2016 or CR2032 batteries into the remote control transmitter.
  2. Press the corresponding button on the transmitter to activate the desired function.

Remote Control Functions

The RF 433MHz DC 12V Remote Control Switch offers three operating modes:

  • Momentary: The relay switches on momentarily when the button is pressed and turns off when released.
  • Toggle: The relay switches on when the button is pressed and remains on until the button is pressed again.
  • Latched: The relay switches on when the button is pressed and stays on even if the transmitter is turned off. It requires pressing the button again to switch off.

Technical Specifications

Working Voltage & Port Configuration

The RF 433MHz DC 12V Remote Control Switch supports the following working voltages:

  • DC 6V
  • DC 12V
  • DC 24V
  • DC 30V

Port configuration includes input (+V -V) and output (+V -V) terminals.

Operating Modes

The device offers three operating modes:

  • Momentary
  • Toggle
  • Latched

Battery Information & Range

The remote control transmitter comes with included batteries:

  • 2x CR2016 or 1x CR2032

The remote range is up to 50 meters in open space.

Conclusion

The RF 433MHz DC 12V Remote Control Switch is a versatile and reliable wet contact controller that offers multiple operating modes and a wide range of applications. With its easy setup and operation, this device is perfect for controlling motorcycle lights, car lights, LED lighting, and electric gates. The included batteries and remote range up to 50 meters make it a convenient and efficient solution for remote control applications.
