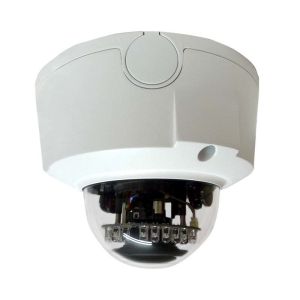

QUBE VERDIN D-MPDW30-W: A Comprehensive Guide to 3MP & POE Indoor Surveillance Camera

Introduction

The QUBE VERDIN D-MPDW30-W is a versatile indoor surveillance camera with a 3~12MM focal length and 3MP resolution. This camera offers a wide range of features and capabilities, including POE support, micro SD card support, and various video compression options. In this article, we will delve into the key features, lens specifications, audio and network interface, and other important aspects of this high-quality indoor surveillance camera.

Key Features & Capabilities

Max. IR LEDs Length & Day/Night Modes

The QUBE VERDIN D-MPDW30-W boasts a maximum IR LEDs length of 20 meters, ensuring excellent night vision. The camera supports auto ICR (Auto ICut Relay), color, and black & white day/night modes, allowing it to adapt to different lighting conditions.

Backlight Compensation & White Balance

With advanced backlight compensation (BLC), high-light compensation (HLC), and wide dynamic range (WDR) capabilities (up to 100dB), the camera effectively handles challenging lighting situations. Additionally, the camera features automatic white balance adjustment for accurate color reproduction.

Gain Control & Noise Reduction

The QUBE VERDIN D-MPDW30-W offers both auto and manual gain control options, enabling users to fine-tune the camera's sensitivity according to their preferences. Furthermore, the camera includes 3D noise reduction technology, which helps minimize visual noise and improve overall image quality.

Lens Specifications & Video Quality

Focal Length & Max Aperture

The camera features a focal length range of 3.3-12mm, providing users with the flexibility to adjust the camera's field of view. With a maximum aperture of F1.4, the camera captures clear images even in low-light conditions.

Angle of View & Lens Type

The QUBE VERDIN D-MPDW30-W offers a horizontal angle of view ranging from 91.2° (wide) to 25.5° (tele), depending on the selected focal length. The camera comes with a manual/auto iris (DC) lens, allowing users to manually adjust the aperture or let the camera handle it automatically.

Video Compression & Resolution

The camera supports two video compression formats: H.264 and MJPEG. It offers various resolution options, including 3.0M (2048x1536), 1080P (1920x1080), 720P (1280x720), D1 (704x576), and CIF (352x288). Users can choose the desired frame rate and bit rate according to their preferences and network bandwidth availability.

Audio & Network Interface

Audio Compression & Interface

The QUBE VERDIN D-MPDW30-W supports audio compression formats such as G.711a, G.711u (64kbps), and PCM (128kbps). The camera features a 1/1 channel audio input/output interface, enabling users to capture and transmit audio data alongside video.

Ethernet & Protocol Support

The camera is equipped with an RJ-45 (10/100Base-T) Ethernet port, allowing for easy network connectivity. It supports various protocols, including IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, and SNMP, ensuring seamless integration with existing network infrastructures.

In conclusion, the QUBE VERDIN D-MPDW30-W is an outstanding indoor surveillance camera that offers exceptional image quality, advanced features, and versatile connectivity options. Its 3~12MM focal length, 3MP resolution, POE support, and micro SD card support make it an ideal choice for various applications, including home security, business monitoring, and more." }
