LM317 Adjustable Voltage Regulator Power Supply DIY Kit: A Comprehensive Guide

What is a Stabilized Power Supply?

A stabilized power supply is an electronic device that provides a constant output voltage despite variations in input voltage or load conditions. It plays a crucial role in maintaining the stability and performance of electronic circuits and devices.

Key Features of a Stabilized Power Supply

• Constant Voltage Output: Regardless of input voltage fluctuations, the output voltage remains stable.
• Efficient Energy Utilization: Minimizes energy loss and maximizes efficiency.
• Protection Against Overload and Short Circuit: Safeguards electronic components from damage caused by excessive current draw.

Benefits of Using a Stabilized Power Supply

• Improved Performance: Consistent voltage supply enhances the performance of electronic devices.
• Longer Lifespan: Protects sensitive components from voltage fluctuations, extending their lifespan.
• Energy Savings: Reduces energy consumption by minimizing losses.

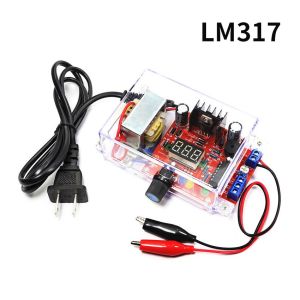

DIY Power Supply Kit: LM317 Adjustable Voltage Regulator

The LM317 Adjustable Voltage Regulator Power Supply DIY Kit is a popular choice among hobbyists and electronics enthusiasts due to its affordability and ease of use. This kit allows users to build their own stabilized power supply capable of converting AC 220V to DC 1.25-12V.

Components Included in the LM317 Voltage Regulator Kit

• LM317 Adjustable Voltage Regulator IC: The heart of the kit, responsible for regulating output voltage.
• Transformer: Converts AC mains voltage to a lower AC voltage suitable for rectification.
• Rectifier Diodes: Converts AC voltage to pulsating DC voltage.
• Capacitors: Filters out ripples from the rectified DC voltage.
• Resistors: Used in the voltage divider network to set the desired output voltage.
• Heat Sink: Dissipates heat generated by the LM317 regulator.
• Power Switch: Controls power supply to the circuit.

How to Assemble the DIY Power Supply Kit

1. Assemble the transformer and rectifier diodes to convert AC mains voltage to pulsating DC voltage.
2. Connect the capacitors to filter out ripples from the rectified DC voltage.
3. Solder the resistors in the voltage divider network to set the desired output voltage.
4. Mount the LM317 regulator on the heat sink and connect it to the filtered DC voltage.
5. Test the assembled power supply using a multimeter to ensure proper functioning.

AC 220V to DC 1.25-12V Conversion

Understanding the conversion process from AC 220V to DC 1.25-12V is essential for building a reliable stabilized power supply.

Understanding AC to DC Conversion

The process involves several steps:

1. Step-down Transformation: Reduces the high AC mains voltage to a lower AC voltage suitable for rectification.
2. Rectification: Converts the AC voltage to pulsating DC voltage using diodes.
3. Filtering: Removes ripples from the rectified DC voltage using capacitors.
4. Voltage Regulation: Regulates the filtered DC voltage to a constant output voltage using the LM317 regulator.

Importance of Voltage Regulation

Voltage regulation is crucial for ensuring stable and consistent output voltage, which is essential for the reliable operation of electronic devices.

Conclusion

Final Thoughts on the LM317 Adjustable Voltage Regulator Power Supply DIY Kit

The LM317 Adjustable Voltage Regulator Power Supply DIY Kit is an excellent choice for building a reliable stabilized power supply. With its affordability and ease of use, it is a popular choice among hobbyists and electronics enthusiasts.

Next Steps for Further Exploration

For further exploration, consider experimenting with different components and configurations to optimize the performance of your power supply. Additionally, explore advanced topics such as overcurrent protection and thermal management to enhance the reliability and efficiency of your power supply.
