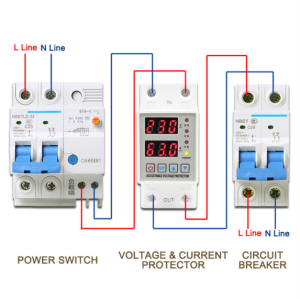

63A 230V 3IN1 Display Din rail adjustable over under voltage surge protector relay over current protect Kwh Power watt Meter

Function: 1. Overvoltage protection 2. Undervoltage protection 3. Overcurrent protection 4. Automatic recovery 5. Voltage display (voltage measurement) 6. Current display (current measurement) Product parameters: 1. Model: JJVPD1-40F (63/80) 2. Power supply: 230VAC 50/60Hz 3. Maximum load power: 1~40A adjustable (default: 20A) 1~63A adjustable (default: 40A) 1~80A adjustable (default: 60A) 4. Overvoltage protection value range: 230V~300~OFF (default: 270V) Overvoltage recovery voltage range: 225V--295V (default: 250V) Overvoltage protection action time: 0.1s~30s (default: 0.5s) Overvoltage recovery delay time: 1s~500s (default: 30s) 5. Undervoltage protection value range: 140V--210V --OFF (default: 170V) Undervoltage recovery voltage range: 145V--215V (default: 190V) Undervoltage protection action time: 0.1s~30s (default: 0.5s) Undervoltage recovery delay time: 1s~500s (default: 30s) 6. Overcurrent adjustment range: 1-40A (default: 20A) 1-63A (default: 40A) Overcurrent action range: 0.1~30 seconds (default: 0.5s) Overcurrent recovery delay time: 1s~500s (default: 30s) 7. Boot delay time: 1s~500s (default: 10s) 9. Power consumption: <2W 10. Motor life: 100,000 times 11. Installation: 35mm DIN rail Note: When connecting the product for the first time, you need to wait about 10 seconds (boot delay time: 1 s~50 0s (default: 10 s)), and the product can work only after the red light goes out.❀Hello!Welcome to Obsession store.ph!Quality first, service best is our aim.Please feel free to contact us if you have any questions.❀The goods in this store have sufficient supply, pay attention to this store, and the baby will be shipped first!❀We are a local merchant in the Philippines.❀Our delivery speed is the fastest in the Philippines. ❀Delivery takes about 1-3 days in Manila and 3-6 days in other areas. Please rest assured to order, thank you!
