Space Saver Rack: A Comprehensive Guide to Server Rack Cabinets

Understanding Server Rack Cabinets

What is a Server Rack Cabinet?

A server rack cabinet is a metal enclosure designed to house and organize rack-mounted equipment, such as servers, network switches, and storage devices. These cabinets come in various sizes and configurations, providing a secure and efficient way to manage data center infrastructure.

Types of Server Rack Cabinets

Server rack cabinets can be categorized by their size, measured in rack units (RU). Common sizes include 4u, 6u, 9u, 12u, 15u, and 22u racks. Additionally, server rack cabinets can have fixed shelves or adjustable shelves, depending on the specific requirements of the data center.

Key Features of Server Rack Cabinets

Server rack cabinets offer several features that make them ideal for managing data center infrastructure, including:

• Secure storage: Server rack cabinets provide a secure environment for storing sensitive equipment.
• Improved airflow: Properly designed server rack cabinets optimize airflow, reducing the risk of overheating and improving equipment performance.
• Easy access: Server rack cabinets are designed for easy access to equipment, making maintenance and upgrades more convenient.
• Scalability: Server rack cabinets can be easily expanded or reconfigured to accommodate growing data center needs.

Choosing the Right Space Saver Rack

Factors to Consider When Selecting a Space Saver Rack

When choosing a space saver rack, consider the following factors:

• Size: Determine the appropriate size based on the number of servers and other equipment that will be housed in the cabinet.
• Shelf configuration: Decide whether fixed shelves or adjustable shelves are better suited for your needs.
• Load capacity: Ensure the rack can support the weight of the equipment it will house.
• Compatibility: Verify that the rack is compatible with your existing infrastructure.

Comparing 4u, 6u, 9u, 12u, 15u, and 22u Racks

When selecting a space saver rack, consider the following comparisons between different rack sizes:

• 4u rack: Ideal for small data centers or edge computing environments.
• 6u rack: Suitable for medium-sized data centers or those with limited space.
• 9u rack: Offers a good balance between capacity and space efficiency.
• 12u rack: Provides ample space for larger data centers or those with multiple servers.
• 15u rack: Ideal for large data centers or those with extensive storage needs.
• 22u rack: Offers maximum capacity for large-scale data centers or those with multiple racks.

Benefits of Using a Space Saver Rack

Using a space saver rack offers several benefits, including:

• Increased efficiency: Space saver racks optimize space usage, allowing for more equipment to be housed in a smaller area.
• Improved organization: Fixed shelves provide a neat and organized layout for servers and other equipment.
• Enhanced security: Server rack cabinets offer a secure environment for sensitive equipment.
• Reduced costs: By maximizing space usage, space saver racks can help reduce overall data center costs.

Installing and Configuring Server Rack Cabinets

How to Install a Server Rack Cabinet

To install a server rack cabinet, follow these steps:

1. Choose a suitable location for the cabinet, taking into account factors such as power supply, cooling, and access.
2. Assemble the cabinet according to the manufacturer's instructions.
3. Install any necessary accessories, such as cable management arms or power distribution units.
4. Mount the cabinet securely to the floor or wall, if required.

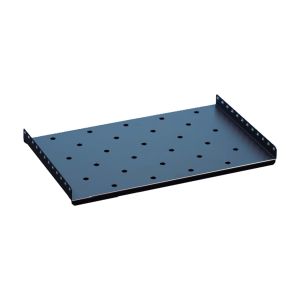

Configuring Fixed Shelves for Rack Servers

To configure fixed shelves for rack servers, follow these steps:

1. Determine the appropriate shelf configuration based on the size and weight of the servers and other equipment.
2. Install the shelves according to the manufacturer's instructions.
3. Mount the servers and other equipment onto the shelves.

Best Practices for Server Rack Cabinet Management

To ensure optimal performance and longevity of your server rack cabinet, follow these best practices:

• Regular maintenance: Clean the cabinet and its contents regularly to prevent dust buildup and improve airflow.
• Proper cable management: Organize cables neatly to avoid clutter and improve cooling efficiency.
• Monitor temperature and humidity: Regularly check the temperature and humidity levels inside the cabinet to ensure they remain within safe limits.
• Keep spare parts on hand: Maintain a stock of spare parts, such as screws and mounting hardware, to facilitate quick repairs or upgrades.

Maximizing the Performance of Your Server Rack Cabinet

Tips for Optimizing Server Rack Cabinet Usage

To optimize the performance of your server rack cabinet, consider the following tips:

• Monitor power usage: Regularly check the power consumption of the equipment housed in the cabinet to ensure it remains within safe limits.
• Implement redundancy: Consider implementing redundant power supplies and cooling systems to improve reliability.
• Upgrade components: Periodically upgrade components, such as servers and storage devices, to maintain optimal performance.

How to Maintain a Server Rack Cabinet

To maintain a server rack cabinet, follow these steps:

1. Clean the cabinet and its contents regularly to prevent dust buildup and improve airflow.
2. Check the temperature and humidity levels inside the cabinet regularly.
3. Monitor power usage and implement redundancy if necessary.
4. Upgrade components as needed to maintain optimal performance.

Troubleshooting Common Issues with Server Rack Cabinets

To troubleshoot common issues with server rack cabinets, consider the following steps:

• Overheating: If the cabinet is overheating, check the cooling system and ensure proper airflow.
• Power issues: If there are power issues, check the power supply and ensure proper grounding.
• Cable management: If cables are causing clutter or interference, reorganize them to improve organization and reduce risk of damage.
