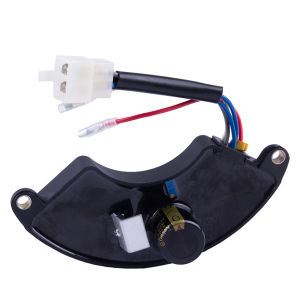

2-6.5KW Generator Regulator & AVR Voltage Regulator: A Comprehensive Guide

What is a 2-6.5KW Generator Regulator?

A 2-6.5KW generator regulator is a crucial component of a generator system, responsible for maintaining a stable voltage output within the specified range. It ensures that the generator operates efficiently and safely, providing consistent power supply to connected devices and appliances.

How Does It Work?

The generator regulator works by monitoring the output voltage of the generator and adjusting the excitation current to maintain a stable voltage level. When the generator's output voltage drops below the desired range, the regulator increases the excitation current, causing the generator to produce more power. Conversely, if the output voltage exceeds the desired range, the regulator decreases the excitation current, reducing the generator's power output.

Benefits of Using a 2-6.5KW Generator Regulator

Using a 2-6.5KW generator regulator offers several advantages, including:

• Improved efficiency and reliability of the generator system
• Enhanced safety by preventing voltage fluctuations that could damage connected devices
• Extended lifespan of the generator and connected equipment
• Consistent power supply for critical applications

Single Phase Voltage Stabilizer: An Overview

A single phase voltage stabilizer is a device designed to regulate the input voltage of a single-phase electrical system, ensuring a stable output voltage within a specified range. It works by monitoring the input voltage and adjusting the output voltage to maintain a consistent level, regardless of fluctuations in the input voltage.

Square/Sector Design Explained

The square/sector design refers to the internal structure of the voltage stabilizer, which consists of a transformer with multiple taps or sectors. These sectors allow the stabilizer to adjust the output voltage by changing the number of turns in the transformer's winding, providing precise control over the output voltage.

Stable Voltage Control Mechanism

The stable voltage control mechanism of a single phase voltage stabilizer works by monitoring the input voltage and adjusting the output voltage accordingly. When the input voltage drops below the desired range, the stabilizer increases the number of turns in the transformer's winding, raising the output voltage. Conversely, if the input voltage exceeds the desired range, the stabilizer decreases the number of turns, lowering the output voltage.

Key Features of AVR Voltage Regulator

An AVR voltage regulator, or Automatic Voltage Regulator, is a type of generator regulator that automatically adjusts the excitation current to maintain a stable voltage output. It offers several key features, including:

• Automatic adjustment of excitation current to maintain stable voltage output
• Improved efficiency and reliability of the generator system
• Enhanced safety by preventing voltage fluctuations that could damage connected devices
• Compatibility with various generator systems, including 2-6.5KW generator regulators

Compatibility with 2-6.5KW Generator Regulators

AVR voltage regulators are compatible with 2-6.5KW generator regulators, providing precise control over the generator's output voltage. This compatibility ensures that the generator operates efficiently and safely, delivering consistent power supply to connected devices and appliances.

Installation Tips & Best Practices

To ensure proper installation and operation of a 2-6.5KW generator regulator or AVR voltage regulator, follow these tips and best practices:

• Consult the manufacturer's instructions for specific installation requirements
• Install the regulator in a dry, well-ventilated area away from heat sources
• Connect the regulator to the generator according to the manufacturer's specifications
• Test the regulator's functionality before connecting it to critical applications

Long-Term Maintenance & Troubleshooting

Regular maintenance and troubleshooting are essential to ensure the long-term performance and reliability of a 2-6.5KW generator regulator or AVR voltage regulator. Some common issues and solutions include:

• Overheating: Check for proper ventilation and clean the regulator's air intake and exhaust ports
• Voltage fluctuations: Inspect the generator's wiring and connections for loose or damaged components
• Malfunctioning: Replace faulty components or seek professional assistance if necessary

Extending the Lifespan of Your Voltage Regulator

To extend the lifespan of your voltage regulator, follow these tips:

• Regularly clean and inspect the regulator for signs of wear or damage
• Keep the regulator's air intake and exhaust ports free of debris
• Avoid exposing the regulator to extreme temperatures or humidity levels
• Follow the manufacturer's maintenance schedule and recommendations
