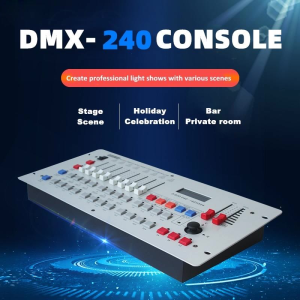

DMX 512 Controller Console Mixer Panel 240 Channels Lighting Effects Equipment Operator Equipment Moving Head Stage Light

Introduction to the ZKE-240SL DMX Stage Light

The ZKE-240SL DMX Stage Light is a powerful lighting control system designed specifically for professional stage and DJ applications. This comprehensive guide will walk you through the key features, specifications, target audience, and applications of the ZKE-240SL DMX Stage Light, as well as provide a step-by-step guide to setting up, mastering, and maintaining your DMX 512 controller console mixer panel.

Key Features and Specifications

The ZKE-240SL offers a range of advanced features, including:

• 240 channels lighting mixer
• Control stage lights quantity: 12 pcs
• Controllable maximum channels per light: 16 CHs
• Scene time to stop: 0.1-25.5 s/step
• Gradual scene: 0.1-speed 25.5 seconds
• Dimming channels: Channel 24
• Storage capacity: 128K high-capacity memory card
• Auto memory function: stored programs will never get lost

Target Audience and Applications

The ZKE-240SL DMX Stage Light is perfect for professional stage lighting designers, DJs, and live performance venues. Its robust features and high-capacity memory card make it an excellent choice for large-scale events, concerts, and theater productions.

Setting Up Your DMX 512 Controller Console Mixer Panel

Setting up your DMX 512 controller console mixer panel is straightforward and can be completed in just a few simple steps.

Power Supply and Connection

Ensure your power supply meets the voltage requirements (90-240V) and connect the power cable to the ZKE-240SL DMX Stage Light.

Configuring the 240 Channels Lighting Mixer

Using the intuitive interface, configure the 240 channels lighting mixer to suit your specific lighting requirements. Assign channels to individual lights and adjust dimming levels as needed.

Connecting Moving Head Light Control Equipment

Connect your moving head light control equipment to the ZKE-240SL DMX Stage Light using the appropriate cables and connectors. Follow the manufacturer's instructions for optimal performance.

Mastering the DMX 512 Controller Console Mixer Panel

To get the most out of your ZKE-240SL DMX Stage Light, familiarize yourself with the following advanced features:

Understanding Scene Time and Gradual Scene Controls

Scene time allows you to set the duration of each scene, while gradual scene controls enable smooth transitions between scenes. Experiment with different settings to achieve the desired effect.

Utilizing Auto Memory Function and High-Capacity Memory Card

The auto memory function ensures that stored programs will never get lost, even if the power is interrupted. Take advantage of the high-capacity memory card to store multiple lighting designs and scenes.

Managing Dimming Channels and Light Control

Adjust dimming channels and light control settings to achieve the desired lighting effect. The ZKE-240SL offers a wide range of dimming options, allowing you to create dynamic lighting designs.

Troubleshooting and Maintenance Tips

To keep your ZKE-240SL DMX Stage Light running smoothly, follow these troubleshooting and maintenance tips:

Common Issues and Solutions

• Issue: No power
  • Solution: Check the power supply and ensure the voltage meets the requirements.
• Issue: Incorrect channel assignment
  • Solution: Reconfigure the lighting mixer to assign channels correctly.

Regular Maintenance and Cleaning

Regularly clean the ZKE-240SL DMX Stage Light to prevent dust buildup and ensure optimal performance. Refer to the manufacturer's guidelines for cleaning and maintenance procedures.
