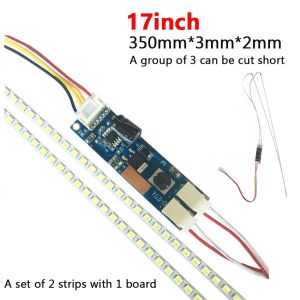

350mm LED Backlight Strip Kit & LED Constant Current Step-Up Board for 17 Inch LCD Screen

Introduction

What is an LCD Screen Lighting Kit?

An LCD screen lighting kit is designed to enhance the display quality of a liquid crystal display (LCD) screen by providing a uniform backlighting solution. This kit consists of an LED backlight strip and a step-up board that converts the input voltage to a stable output current required for the LED strip.

Key Features of the LED Constant Current Step-Up Board

The LED constant current step-up board is a crucial component of the LCD screen lighting kit. It features a wide voltage input range of 12-30V, making it compatible with various power sources. This board regulates the output current to ensure consistent brightness across the LED strip, preventing flickering and prolonging the lifespan of the LEDs.

Installation Guide

Preparing the LCD Screen Backlight Strip

Before installing the 350mm LED backlight strip, make sure to carefully inspect the LCD screen and its mounting frame. Remove any existing backlighting components, if applicable, and clean the area where the LED strip will be installed. Next, position the LED strip along the edge of the LCD screen, ensuring it covers the entire display area.

Connecting the LED Constant Current Step-Up Board

To connect the LED constant current step-up board, first, attach it to the power source using the appropriate cable. Then, connect the LED strip to the step-up board by following the manufacturer's instructions. Make sure to secure all connections properly to prevent any loose wires or electrical shorts.

Testing the Installation

Once the LED backlight strip and step-up board are installed, it's essential to test the system to ensure proper functionality. Power on the LCD screen and observe the display for any signs of flickering, dimness, or uneven lighting. If everything looks good, proceed to calibrate the brightness settings to achieve optimal viewing conditions.

Troubleshooting & Maintenance

Common Issues & Solutions

Some common issues that may arise during installation include improper connections, incorrect voltage input, or faulty components. To address these problems, double-check all connections, verify the power source voltage, and inspect the step-up board and LED strip for any visible damage.

Cleaning & Caring for the LED Backlight Strip

To maintain the performance and longevity of the LED backlight strip, it's crucial to keep it clean and free from dust or debris. Use a soft, lint-free cloth to gently wipe the surface of the LED strip, avoiding any harsh chemicals or abrasive materials that could damage the LEDs.

Extending the Lifespan of Your LCD Screen Lighting Kit

By following proper installation procedures, performing regular maintenance, and addressing any issues promptly, you can significantly extend the lifespan of your LCD screen lighting kit. Remember to store any unused components in a cool, dry place to prevent damage from moisture or extreme temperatures." }
