(Shipped from PH)WenQia RF 433MHz Wireless Remote Control Switch AC 110V 220V 230V 240V 10A 4Channel Relay Receiver Module for Garage/Light/Motor/DIY
433MHz rf Remote Control Switch AC 110V 220V 10Amp 2200W 4CH Wireless Relay Receiver Controller for Garage Door Motor LED Bulb
Relay Receiver Board Parameter
Working voltage : AC 85V~250V
Input/Output vlotage : 1~250V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
RF frequency : 433MHz
Pin : NO / COM / NC
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 25 pieces
Support encoding : 1527 Leaning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode /Mixed Mode
Product Application Area Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on. Remote control garage door Electric door \ house door \ shutter door expansion door \ gate door \ road gate Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb ventilation device Signal transmission Remote control motor positive and negative rotation motor switch \ DIY
How to connect
The input power can be AC 85-250V.Here is a picture for you:
Working Modes
-
- Momentary Mode:Press and hold on button "A" , relay will turn on; Release the button, this relay will turn off.
-
- Toggle Mode:Press button "A", relay will turn on; Press button "A" again, this relay will turn off.
-
- Latched mode:Press button "A", relay "1" will turn on; Press button "B", relay "2" will turn on, at the same time relay "1" will turn off. - 4. Mix mode:Relay "1" "2" work in Momentary mode,Relay "3" "4" work in Toggle mode.
-
- Mix mode:Relay "1" "2" work in Momentary mode,Relay "3" "4" work in Latched mode.
-
- Mix mode:Relay "1" "2" work in Toggle mode,Relay "3" "4" work in Latched mode.
How to set Momentary Mode:Press the learning button(on the Receiver) once. Press button "A" . Wait for 3 seconds.Succeed. Toggle Mode:Press the learning button(on the Receiver) 2 times. Press button "A" . .Wait for 3 seconds.Succeed. Latched mode:Press the learning button(on the Receiver) 3 times. Press button "A" . Press button "B".Wait for 3 seconds.Succeed. Mix mode:Press the learning button(on the Receiver) 4/5/6 times.Press button "A".Wait for 3 seconds.Succeed.
How to reset Press the learn button 8 times,succeed.
Product detail
If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!
WenQia Smart Switch Store
Review
You May Also Like

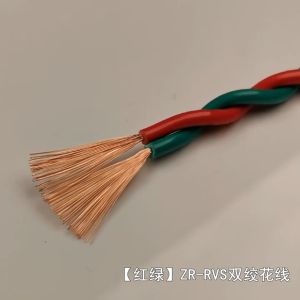

Twisted Pair Wire 18AWG 1.5 Square RVS Cable 50m 100m Copper Electric Wire Extension Power Cords
KEELAT KID004 420N Electric lmpact Wrench Cordless Brushless Wrench lmpact Driver Ratch Wrench Drill
GUYISA | Anti-Static Petrochina Station Use Breathable Wear-Resistant Dust-Free Work Shoes
weiligu | Six-star Torx Screwdriver Bit Socket Set

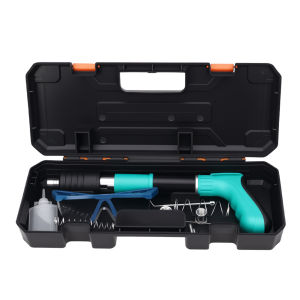

Vodool Manual Steel Nail with 100pcs Nails Wall Anchor Wire Slotting Device Mini Wall Machine Fastening Tool for Red Brick Walls Concrete Walls
360° Rotatable Butterfly-Shaped 3-Hook No Drilling Adhesive Wall Hanger For Towels Keys Jewelry Space-Saving Organizer
BESTOURO 1Pcs Metal Leak Detection Plug 3/8" 1/2" 5/8" 3/4" R134/R12 Condenser Plug Durable Air Conditioning Leakage Plug for Air-conditioning Compressor Pump
19x9.5mm Aluminum T-Track & T-Slot Slide System | Miter Gauge & Fixture Guide Rail for Woodworking Workbench & Jigs

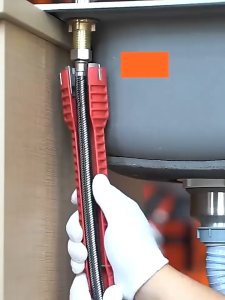

8 In 1 Pipes Wrench Faucet and Sink Installer Plumbing Multifunctional Repair Installation Spanner for Bathroom
1-3 Days Delivery Daytech/Chunhee 433mhz Wireless Sound and Light Siren 100dB Standalone Strobe Siren Home Security Sound Alarm System

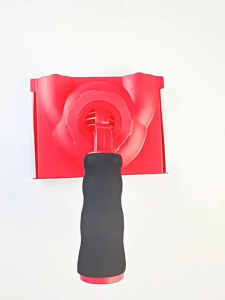

New Professional Latex Paint Edger Brushes Multifunctional Wall Ceiling Corner Painting Brush Color Separator Trimmer Tools Available
