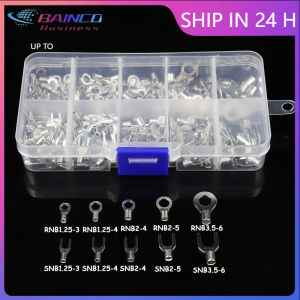

320 Pcs Terminals Connector Copper OT UT SNB RNB Bare Cold Pressed Terminal Block Terminals Wire Crimp Connector

Crimped wire connectors, bare terminal connectors, and cold pressed wire connectors are essential components in electrical wiring systems. This article will provide a comprehensive overview of these types of connectors, their applications, advantages, and installation techniques, focusing on the 320 Pcs Terminal Set.

What Are Crimped Wire Connectors?

Crimped wire connectors are mechanical devices used to connect two or more wires together. They come in various types, such as ring terminals, spade terminals, and fork terminals, among others. These connectors are commonly used in automotive, industrial, and electrical applications.

Types of Crimped Connectors

• Ring terminals: These connectors have a circular shape and are commonly used for connecting wires to screws or posts.
• Spade terminals: These connectors have a flat, blade-like shape and are typically used for connecting wires to female spade receptacles.
• Fork terminals: These connectors have a U-shaped design and are used for connecting wires to male spade terminals.

Applications of Crimped Connectors

Crimped connectors are widely used in various industries, including automotive, aerospace, marine, and telecommunications. They are ideal for connecting wires in high-voltage applications, such as power distribution systems, and low-voltage applications, such as control circuits.

Understanding Bare Terminal Connectors

Bare terminal connectors are wire connectors that do not have insulation covering the metal parts. They are commonly used in electrical wiring systems where insulation is not required.

Features of Bare Terminal Connectors

• They provide a secure connection between wires.
• They are easy to install and remove.
• They can be used in various applications, such as automotive, industrial, and electrical systems.

Choosing the Right Bare Terminal Connector

When selecting a bare terminal connector, consider the wire size, application, and environmental conditions. It is essential to choose a connector that meets the specific requirements of the application.

Exploring Cold Pressed Wire Connectors

Cold pressed wire connectors are crimped connectors that are compressed using a hydraulic press instead of a crimping tool. This process creates a stronger connection between the wire and connector.

Advantages of Cold Pressed Connectors

• They provide a stronger connection than crimped connectors.
• They are less prone to corrosion and wear.
• They can be used in high-voltage applications.

Proper Installation Techniques

To install cold pressed connectors, follow these steps:

1. Strip the insulation from the wire.
2. Insert the wire into the connector.
3. Compress the connector using a hydraulic press.
4. Verify the connection by pulling on the wire.

The Benefits of a 320 Pcs Terminal Set

A 320 Pcs Terminal Set offers several benefits, including cost-effective solutions and versatility in applications.

Cost-Effective Solutions

A 320 Pcs Terminal Set provides a cost-effective solution for connecting wires in various applications. It eliminates the need to purchase individual connectors, reducing overall costs.

Versatility in Applications

A 320 Pcs Terminal Set can be used in various applications, including automotive, industrial, and electrical systems. It offers a wide range of connector types, sizes, and materials to meet the specific requirements of different applications.

Mastering Copper Terminal Blocks

Copper terminal blocks are wire connectors made of copper, which is known for its excellent electrical conductivity. They are commonly used in electrical wiring systems where high current capacity is required.

How to Install Copper Terminal Blocks

To install copper terminal blocks, follow these steps:

1. Strip the insulation from the wire.
2. Insert the wire into the terminal block.
3. Tighten the screw to secure the wire.
4. Verify the connection by pulling on the wire.

Troubleshooting Common Issues

Common issues with copper terminal blocks include loose connections, corrosion, and wear. To troubleshoot these issues, check the wire insulation, connector condition, and environmental conditions. Replace any damaged components and ensure proper installation techniques are followed.
