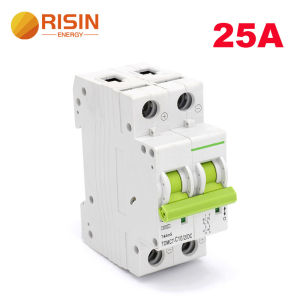

Risin Free Shipping 550VDC 2Pole Solar Circuit Breaker Din Rail DC Circuit Breaker C Curve 10A to 63A 80A 100A 125A

2 Pole 10A to 63A DC MCB

Advantages of Solar Circuit Breaker DC MCB 2Pole

1. DC Circuit Breakeris for non-professional operation by those untrained, and no maintenance is required.

2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.

3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.

4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.

5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

6. Protection against both overload and short circuit

7. Contact position indication

8. Applicable to terminal and pin/fork type Busbar connection

9. Easy mounting onto 35mm DIN rail

Technical Data of Solar DC Circuit Breaker DC MCB 2Pole

		Product Type
		Miniature circuit-breaker


		Poles
		2P


		Frame Degree Rated Current
		63A


		Rated Current
		10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A


		Rated Operation Voltage
		DC 550V


		Trip unit technology
		Thermal-magnetic


		Curve Type
		C


		Rated Impact Voltage Uimp
		4kV


		Ultimate Breaking Capacity Icu
		6kA


		Control Type
		Toggle


		Local Signalling
		ON/OFF indication


		Mounting Mode
		Clip-on


		Mounting Support
		DIN rail 35mm


		Endurance (O-C) , Electrical
		10,000 cycles


		Endurance (O-C) , Mechanical durability
		20,000 cycles


		Standards
		IEC 60947-2


		Waterproof Protection
		lP40 for modular enclosure conforming to IEC 60529


		IP20 conforming to IEC 60529


		Operating Altitude
		2000m


		Ambient Temperature for operation
		-35°C to +70°C


		Ambient Temperature for  storage
		-40°C to +85°C


Product Data of DC Circuit Breaker MCB 2P 10A to 63A 80A 100A 125A

We have higher current for 2P DC Circuit Breaker up to 80A 100A 125A in listing.

We also have 1P & 4P DC Circuit Breaker,PLS visit our store to buy.
