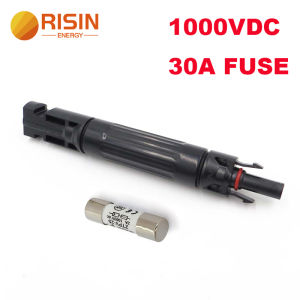

Risin TUV 1000V Solar PV Fused MC4 Connector with DC Inline Fuse 6A 8A 10A 12A 15A 20A 25A 30A

Risin TUV 1000V Solar PV Fused MC4 Connector with DC Inline Fuse 6A 8A 10A 12A 15A 20A 25A 30A

MC4 PV Fuse holder is a 6A, 8A, 10A,12A,15A,20A,25A,30A gPV fuse embedded into a waterproof fuse holder. It features an MC4 connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. MC4 Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Pls purchase this product for extra protection on your system.

KEY FEATURES

Easy to Use

Compatible with PV cables with different insulation diameters.
Designed for a wide range of DC applications.
Simple plug and play.
Auto-lock equipment of male and female points render connections easy and reliable.

Safe

Waterproof – IP67 Class Protection.
Insulation material PPO.
High current-carrying capacity
Protection Class II
Connector adopts touch and insertion of reed with inner-knob type

Technical Data of MC4 PV Fuse Connector

Rated Current:30AInline Fuse Size:10x38mmReplaceable Fuse:YesFuse Range:6A,8A,10A,12A,15A,20A,25A,30ARated Voltage:1000V DCTest Voltage:6KV (50Hz,1Min)Contact Material:Copper, Tin platedInsulation Material:PPOContact Resistance:

Advantages of 1000V 10x38mm MC4 Fuse Connector

Drawing of MC4 inline Fuse Holder 30A

A Simple Connection of Solar Power System:

Risin will always provide high quality solar products for you.
