220V/380V 1.5KW/2.2KW Variable Frequency Drive VFD Inverter [220V 1.5KW] - intl

₱7,615.00
₱15,230.00-50%
Promotions
8% Voucher Off: BGBGX6
Quantity
How to buy?
Delivery Options
Lazada Office,Main Office,Main Office
Fulfilled by Lazada
Economy Delivery
Get by Tue 3 - Thu 5 Jul
Free
Standard Delivery
Get by Thu 28 Jun - Mon 2 Jul
₱9.00
Cash on Delivery Available
Return & Warranty
7 days easy return
Change of mind is not applicable
Warranty not available
Sold by

Positive Seller Ratings

64%

Time on Lazada

2
+years

Seller Size

Product details of 220V/380V 1.5KW/2.2KW Variable Frequency Drive VFD Inverter [220V 1.5KW] - intl

  • Input Voltage : 220V(+/-15%) / 380V(+/-15%).
  • Output Voltage : 220VAC or 380VAC
  • Input Frequency : 48 - 63 Hz
  • Output Frequency : 0 - 650 Hz
  • Input Phase : 1 or 3 phase (1 phase for 220V, and 3 phase for 380V)
  • Output Phase : 1 or 3 phase (1 or 3 phase for 220V, and 3 phase for 380V)

Description :

220V/380V 1.5KW/2.2KW Variable Frequency Drive VFD Inverter

This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc).

It can be used as a motor speed control and a phase converter. The inpute for this VFD is 1 or 3 phase as you like. You can control the different speed as you like when yo use this VFD.

You can use for : Lathes, Mills, Car Hoists, Pumps & Conveyors, etc and then performance excellently. This item use Sine wave PWN(SPWM ) for the control system and performace excellently.

Features :

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2) Easy PLC function can realize 16 legs of speed and inverter control function;
3) RS485 communication port, adopting standard international MODBUS main circuit control;
4) With extremely strong anti-jamming capability;
5) Low output ratting torque0.5HZ-150%, low speed running ability;
6) Carrier adjustable by 16KHZ, completely soundless working environment;
7) Broad voltage working area, normal running in 304V-456V;
8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9) Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
10) With perfect error protection and short circuit starting protection capability;


Tech parameters :

1) Input Voltage : 220V(+/-15%) / 380V(+/-15%).
2) Output Voltage : 220VAC or 380VAC
3) Input Frequency : 48 - 63 Hz
4) Output Frequency : 0 - 650 Hz
5) Input Phase : 1 or 3 phase (1 phase for 220V, and 3 phase for 380V)
6) Output Phase : 1 or 3 phase (1 or 3 phase for 220V, and 3 phase for 380V)



Specification :


Inverter Series

WK-9000

Control Mode

SPWM

Input Power

330~440Vfor 380V power; 170~240V for 220V power

4Digits Display & Status Indicator Lamp

Displaying frequency, current, revolution, voltage, counter, temperature,

forward or reserve running, and fault, etc.

Communication Control

RS-485

Operation Temperature

-10~40℃

Humidity

0-95% Relative Humidity(without dew)

Vibration

Below 0.5G

















Protection Functions















Overload Protection

Electronic relay protection motor

Drive(for constant torque  150%/1 min. for the kinds of fan 120%/1min.)

FUSE Protection

FUSE broken, Motor stops.

Over-voltage

DC Voltage >400V for 220V class

DC Voltage >800V for 380V class

Low Voltage

DC Voltage <200V for 220V class

DC Voltage <400V for 380V class

Instant Stop and Restart

Restarted by frequency track after instantaneous stop.

Stall Prevention

Anti-stall during Acc / Dec run

Output End Shorts

Electronic circuit protecting

Other Functions

Fin over-heat protection, restriction of reverse running,direct start after

power on, fault reset, parameter lock PID,one-drive-more, etc.



Can find more information about this Frequency Inverter in the ENGLISH MANUAL >>>>>Click here



Note on 2014-09-11th :

Please ignore the Chinese panel, we will send you the English Version from now on.


Package includes :

1 x Variable Frequency Drive VFD Inverter (220V 1.5KW / 220V 2.2KW / 380 1.5KW / 380V 2.2KW for Option :)
1 x Accessories set as the following pictures show

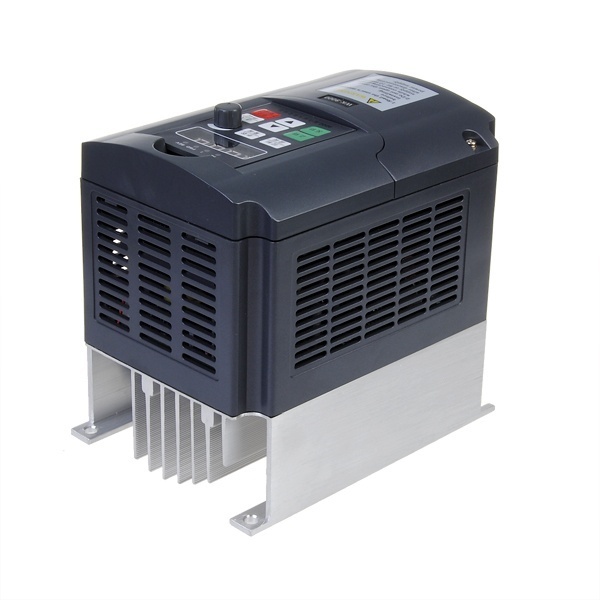

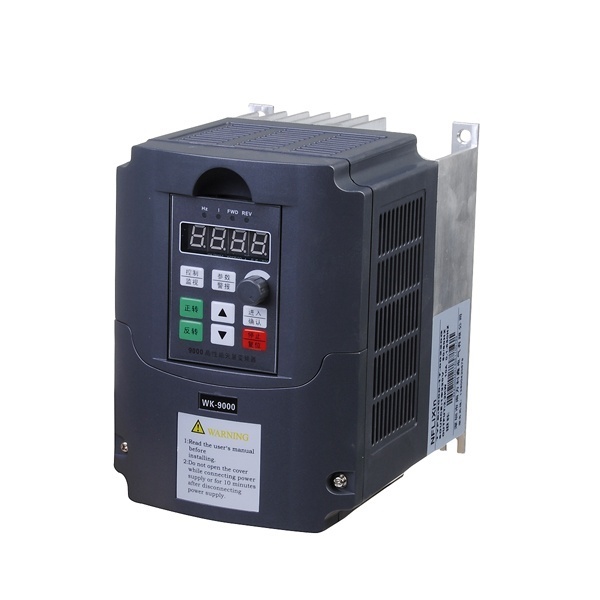

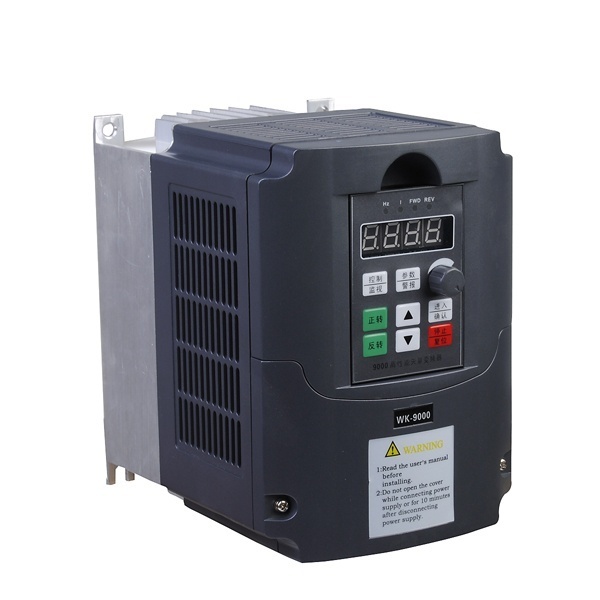

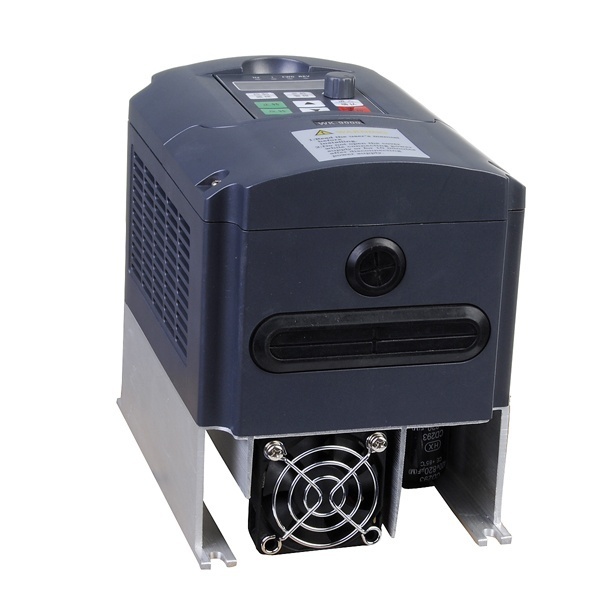

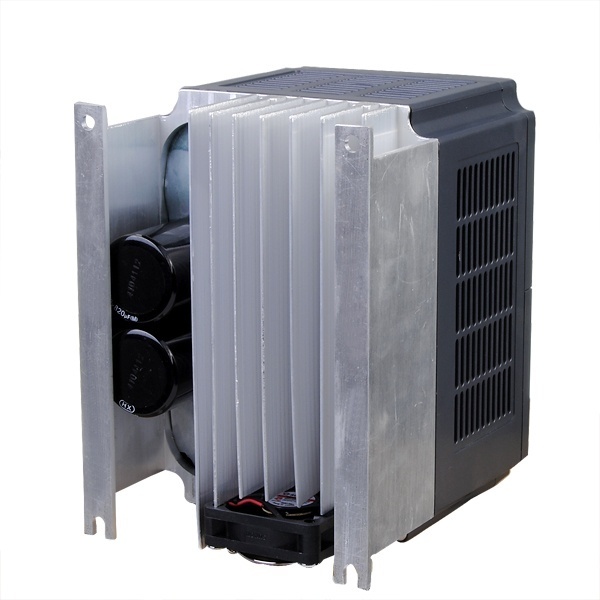

Details pictures :

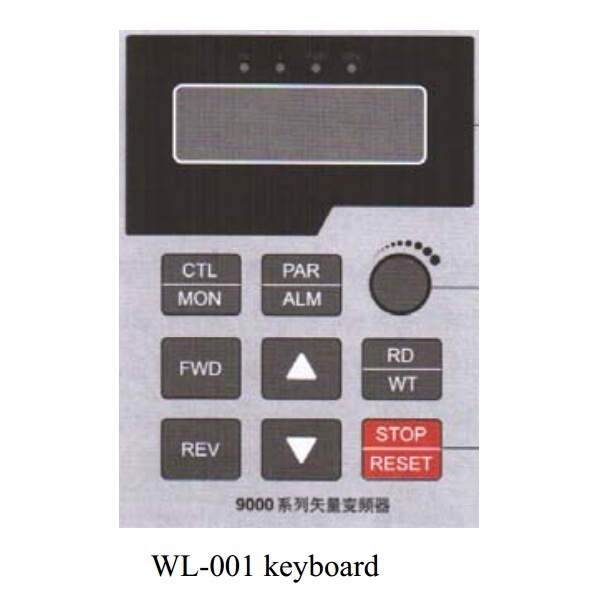

The keyboard's detail Function as the following picture show:


























Specifications of 220V/380V 1.5KW/2.2KW Variable Frequency Drive VFD Inverter [220V 1.5KW] - intl

  • Brand
    Not Specified
  • SKU
    NO649OTAAY3ROWANPH-73197767
  • Model
    Freebang-POA285948
  • Warranty Type
    No Warranty
What’s in the box
  • 1 x Accessories set as the following pictures show
  • 1 x Variable Frequency Drive VFD Inverter (220V 1.5KW / 220V 2.2KW / 380 1.5KW / 380V 2.2KW for Option :)

Ratings & Reviews of 220V/380V 1.5KW/2.2KW Variable Frequency Drive VFD Inverter [220V 1.5KW] - intl

5.0 out of 5
1 Ratings
  • 5 STAR
    1
  • 4 STAR
    0
  • 3 STAR
    0
  • 2 STAR
    0
  • 1 STAR
    0
Product Reviews
Sort:Relevance
Filter:All star
Inquiry only8 months ago
by Sobre N.
Can this be used for single phase and three phase?
Was this review helpful?
Questions about this product (10)
Other questions answered by Channy (10)
  • This inverter for 2.2kw., u Have Available High capacity like 50kw, Input 220-60hz, Single phase. Output 3phase 380v ?
    SCOTT S. - 5 days ago
    Input Voltage : 220V(+/-15%) / 380V(+/-15%). Output Voltage : 220VAC or 380VAC Input Frequency : 48 - 63 Hz Output Frequency : 0 - 650 Hz Input Phase : 1 or 3 phase (1 phase for 220V, and 3 phase for 380V) Output Phase : 1 or 3 phase (1 or 3 phase for 220V, and 3 phase for 380V) . please refer to these.
    Channy - answered within 3 days
  • good day. can this convert 50htz to 60htz?
    Dan T. - 4 weeks ago
    Input Frequency : 48 - 63 Hz 4) Output Frequency : 0 - 650 Hz
    Channy - answered within 16 minutes
  • U hv for 22kw Input 1phase. 230v 60hz output 3phase 380v 50hz
    SCOTT S. - 1 month ago
    Input Voltage : 220V(+/-15%) / 380V(+/-15%). Output Voltage : 220VAC or 380VAC Input Frequency : 48 - 63 Hz Output Frequency : 0 - 650 Hz Input Phase : 1 or 3 phase (1 phase for 220V, and 3 phase for 380V) Output Phase : 1 or 3 phase (1 or 3 phase for 220V, and 3 phase for 380V) . please refer to these
    Channy - answered within 4 days
